Specifications
Engine & Transmission

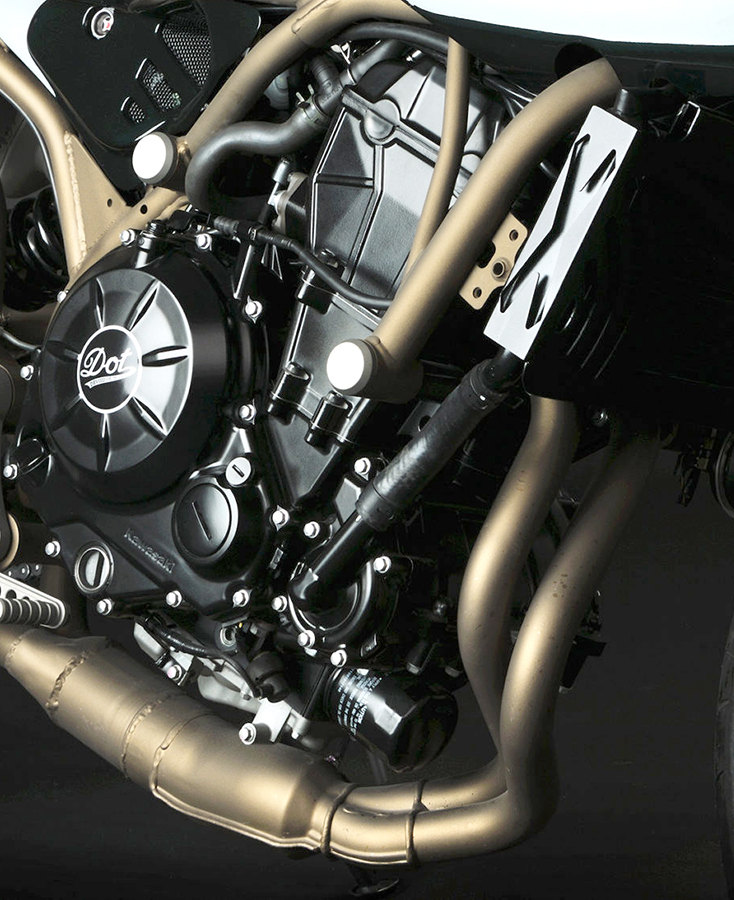

- Engine: – Liquid-cooled, 4-stroke Parallel Twin
- Displacement: 650 cc – 649 cm³
- Bore x stroke: 83 x 60 mm
- Compression ratio: 10.8:1
- Valve system: DOHC, 8 valves
- Fuel system: Fuel injection: Ø 36mm x 2 with dual throttle valves
- Starting System: Electric
- Lubrication: Forced lubrication, semi-dry sump
PERFORMANCE & TRANSMISSION
- Maximum power: 50.2 kW {68 PS} / 8,000 rpm
- Fuel consumption: 4.3 l/100 km
- CO2 emission: 107 g/km
- Maximum torque: 64 N•m {6.5 kgf•m } / 6,700 rpm
- Fuel consumption 35 kW kit: 4.5 l/100 km
- CO2 emissions 35 kW kit: 107 g/km
- Transmission: 6-speed
- Final drive: Sealed chain
- Clutch: Wet multi-disc, manual
- Primary Reduction Ratio: 2.095 (88/42)
BRAKES & SUSPENSION
- Brakes, front: Dual semi-floating 300 mm petal discs. Caliper: BREMBO Quad piston 32/34
- Brakes Rear: Single 220 mm petal disc. Caliper: BREMBO Single piston
- Suspension, front: 40 mm inverted telescopic fork (adjustable) Showa
- Suspension, rear: Single shock with preload adjustment (adjustable) Showa
- ABS
FRAME & DIMENSIONS
- Frame type: Trellis, high-tensile steel, TIG welded
- Trail: 100 mm
- Wheel travel front: 125 mm
- Wheel travel rear: 130 mm
- Tyre, front: 120/70ZR17M/C (58W)
- Tyre, rear: 160/60ZR17M/C (69W)
- L x W x H: 2,035 x 730 x 1,062 mm
- Wheelbase: 1,438 mm
- Ground clearance: 156 mm
- Seat height: 800 mm
- Curb Mass: 169 kg
- Fuel capacity: 10 litres
